Technical Specification/技術規格

- Size/規格：DN50-DN600
- End/連接法蘭：ISO PN6/10/16
- Face to Face/結構長度：DIN 3202 F6  BS5153
- Work Pressure/工作壓力：PN16  DN50-DN400 PN10  DN450-DN600
- Work Temperature/工作溫度：-20℃～100℃

Structure Character/結構特點

- Full Bore Design
  low fluid resistance and perfect Kv value

- Bolted Bonnet
  Easy to assembly and disassembly.

- Easy to Installation
  Suitable in horizontal and vertical direction installation

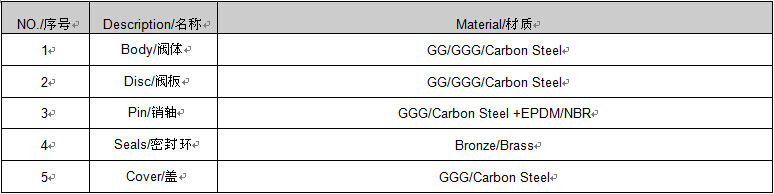

Main Components and Materials/主要零件和材質

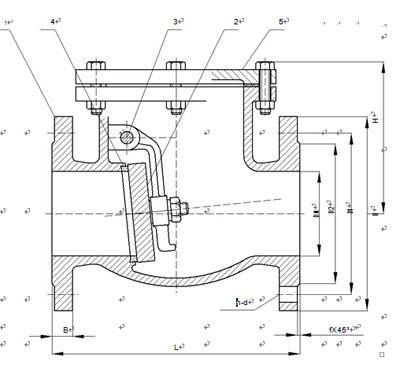

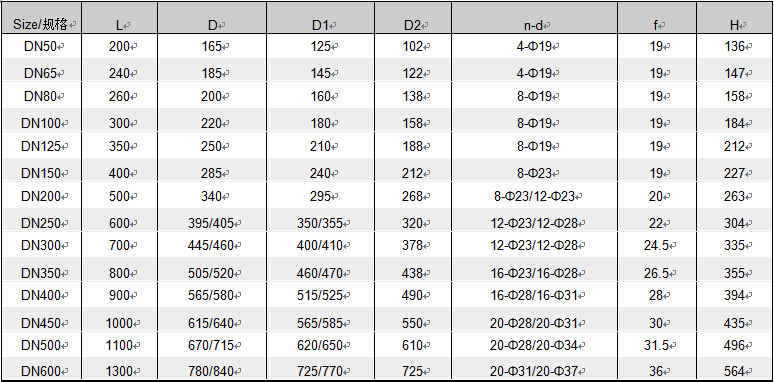

Dimensions/尺寸
