Technical Specification/技術規(guī)格

- Size/規(guī)格：DN40-DN1200

- Design/設計標準：DIN3354
- End/連接法蘭：PN6/10/16/ANSI150
- Top Flange/頂法蘭：ISO5211
- Face to Face/結構長度：ISO5752-20/API609
- Work Pressure/工作壓力：PN6/PN10/PN16

- Work Temperature/工作溫度： NBR-26℃～80℃   EPDM-26℃～120℃  FM-30℃～160℃

Structure Character/結構特點

- Stem keeping in position by circlips
- Operated by lever or gearbox
- Spherical machining disc for a perfect tightness
- Seat extension around stem for a perfect tightness
- Epoxy coating on body

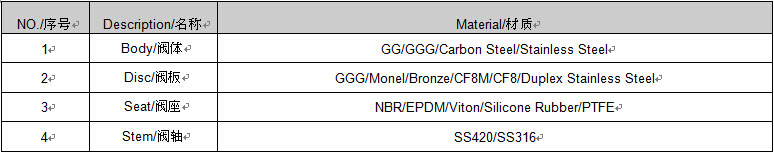

Main Components and Materials/主要零件和材質(zhì)

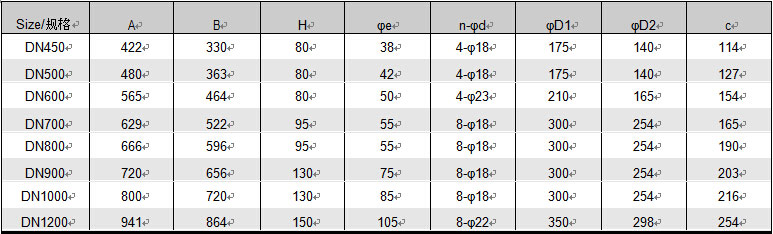

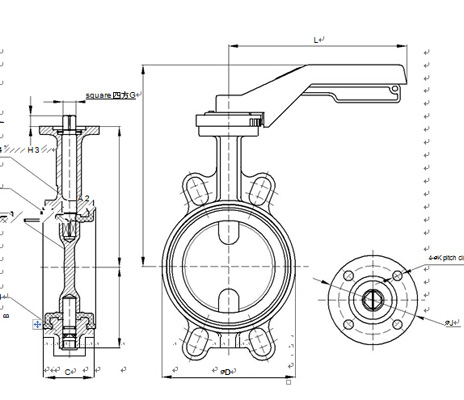

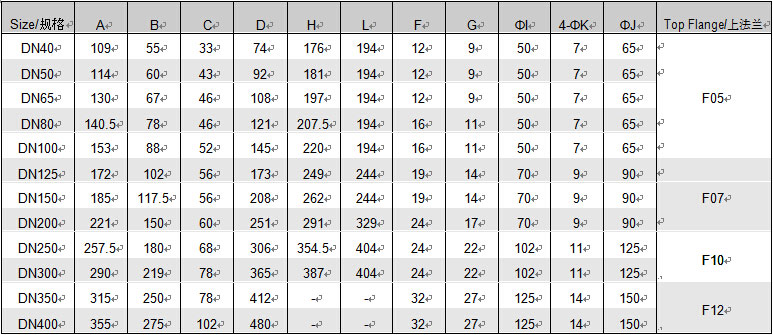

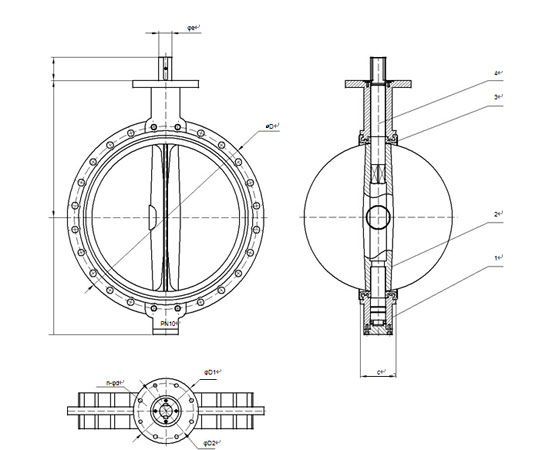

Dimensions/尺寸
