Product introduction
Technical Specification/技術規(guī)格
- Size/規(guī)格：DN15-DN300
- End/連接法蘭：ISO PN6/10/16- Face to Face/結構長度：DIN3202 F1
- Work pressure/工作壓力：PN6/PN10/PN16
- Work temperature/工作溫度：-20℃～100℃
Structure Character/結構特點
- Full tightness,easy operation,low water hammer pressure.
- Suitable in horizontal and vertical installation, easy
installation.

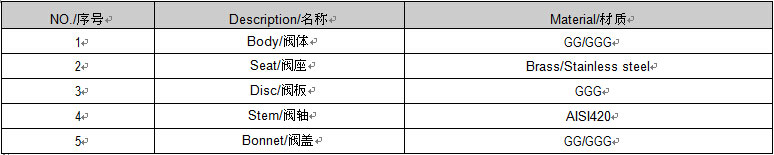

Main Components and Materials/主要零件和材質

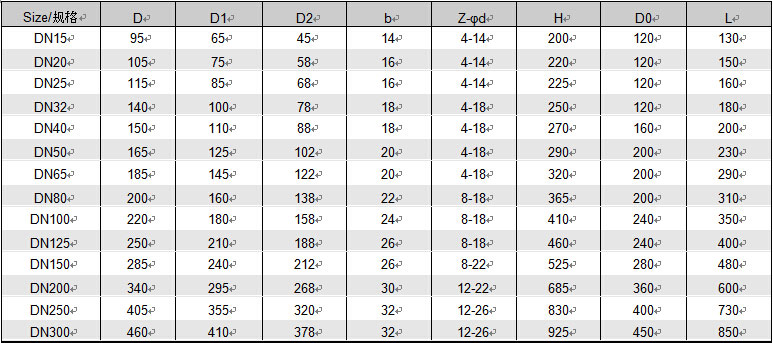

Dimensions/尺寸
