Technical Specification/技術規格

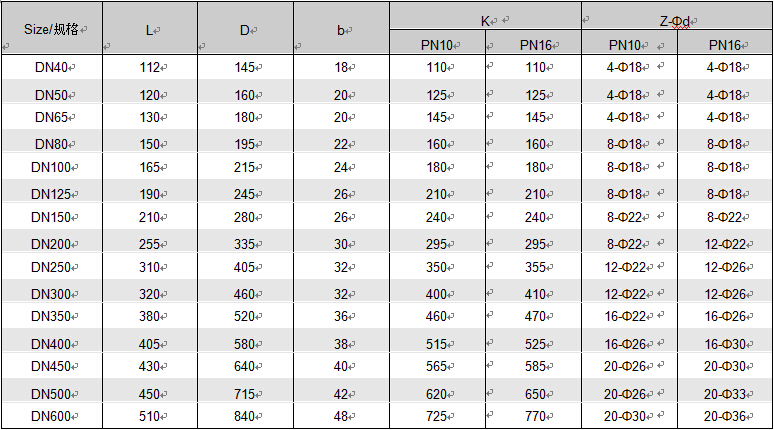

- Size/規格：DN40-DN600
- End/連接法蘭：ISO PN6/10/16
- Face to Face/結構長度：DIN 3202 F3
- Work pressure/工作壓力：PN10/PN16
- Work Temperature/工作溫度：-20℃～80℃

Structure Character/結構特點

- Small volume, light weight, integrated structure.
- Low fluid resistance, perfect Kv value; full tightness, Zero leakage.
- Stable performance, without vibration and noise, low water hammer pressure.
- Suitable in horizontal and vertical direction installation, easy installation.

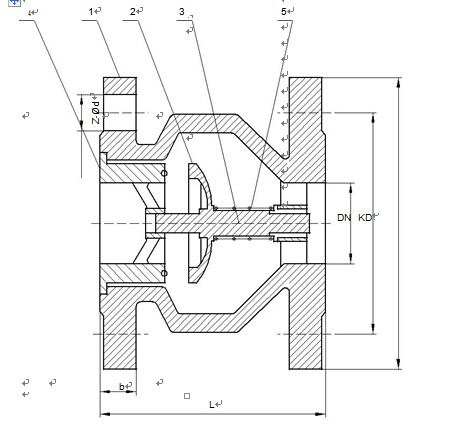

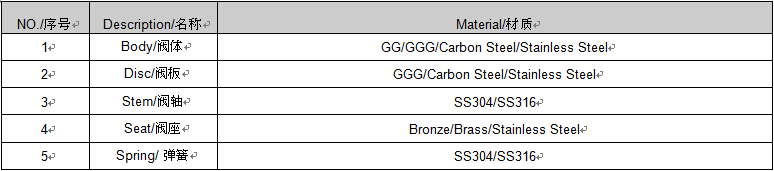

Main Components and Materials/主要零件和材質
