Technical Specification/技術規格

- Size/規格：DN50-DN600
- End/連接法蘭：ISO PN6/10/16
- Work Pressure/工作壓力：PN16  DN50-DN400  PN10  DN450-DN800
- Work Temperature/工作溫度：-20℃～100℃

Structure Character/結構特點

- Small size, light weight, compact structure, easy maintenance;
- Medium is not in contact with the body, to ensure they are able to work in corrosive media;
- Using dual-spring design, the load force evenly distributed to each plate, the valve can be closed quickly when the Media reflux;
- Using shaft fastening screws, effectively preventing shaft runout, avoid valves failures and shaft leaks;
- Completely sealed, zero leakage pressure test;
- Suitable for a variety of media;

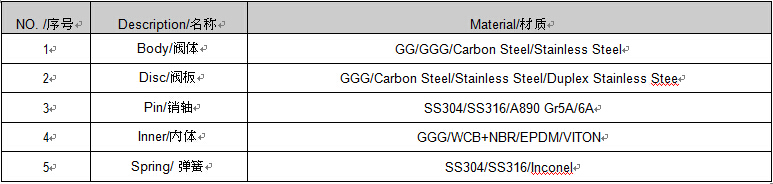

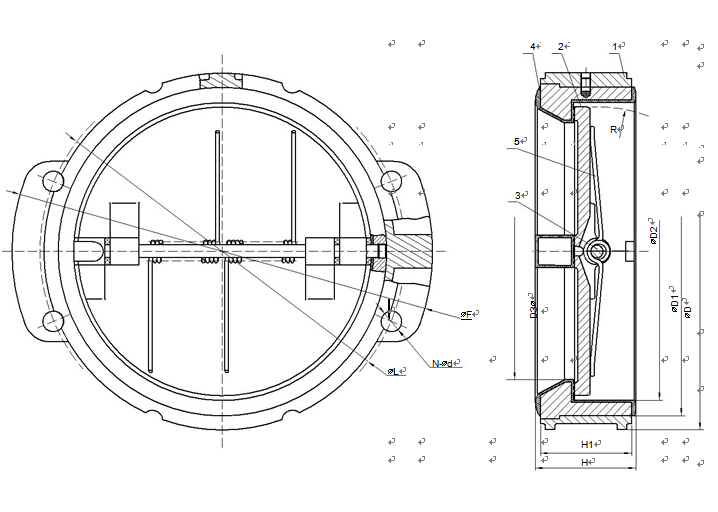

Main Components and Materials/主要零件和材質

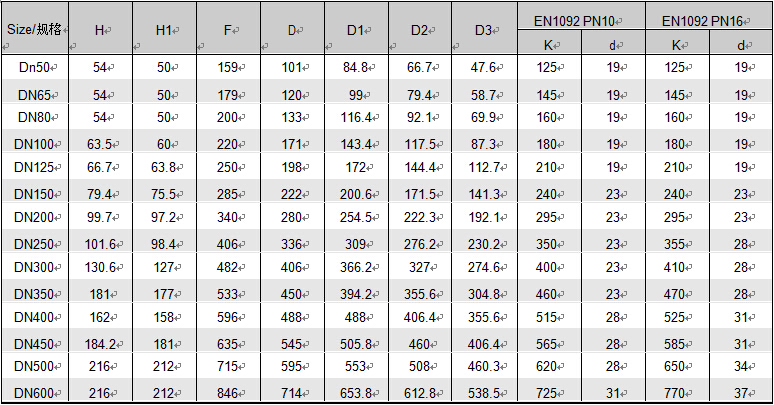

Dimensions/尺寸
